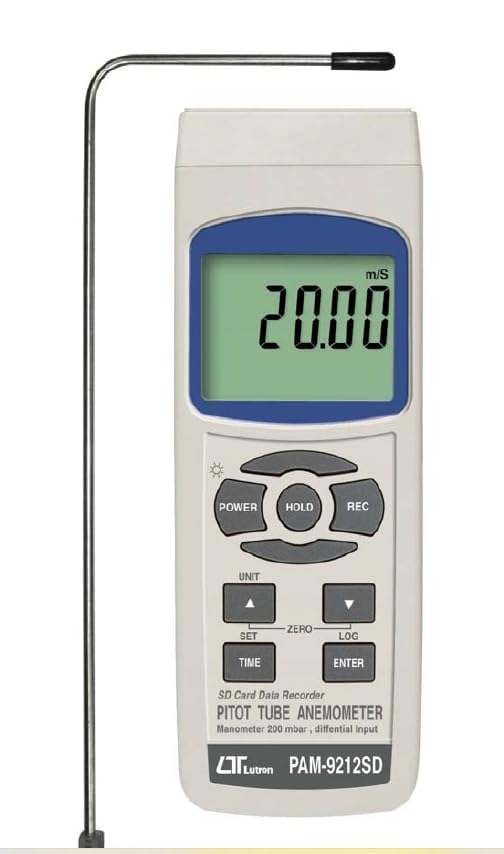

Digital Pitot Tube Anemometer with Differential Manometer for Industrial, Laboratory Model: PAM-9212SD.

Pitot tube Anemometer measurements for Air Velocity for Industrial, laboratory, heating, ventilation, medical hospital, used for air or not corrosive and not ionized gas & liquid. It has a Custom one-chip of microprocessor LSI circuit. Anemometer Measures Air vilocity & Dual differential input, data hold, Function zero/relative, memory. Real time recorder, save the data into the SD memory card and can be download to the Excel, extra software is not need. By slotting the SD card into the computer, all the measured values with the time information (year, month, data, hour, minute, second) can be downloaded to the Excel Directly, then users can make the further data or graphic analysis by themselves. Data error is less than 0.1% of no. of total saved data.

• Dual & differential input, 200 mbar max. range | Built in Sensor inside the housing | Single plugs for pipe connection | Zero button on the front panel, easy to offset the zero value | Microprocessor circuit assures maximum possible accuracy | RS232/USB PC Computer interface | Super large LCD display with contrast adjustment for best viewing angle | LCD with green light backlight | default auto power off or manual power off | Auto shut off saves battery life.
• Air Velocity: 4.1 to 100.0 m/s / 14.7 to 360.0 km/h / 9.1 to 223.7 mph / 7.9 to 194.3 knot / 81 to 19685 ft/min | Resolution: 0.1 m/s / 0.1 Km/h / 0.1 mph / 0.1 Knot / 1 Ft/min | Accuracy: ±( 3% + a )reading / ±( 1% + a )full scale where a = 0.1 m/s, 0.3 km/h, 0.2 mile/h, 0.2 knot, 20 ft/min | Air density: 1.200.
• Operating Temperature: 0°C to 50°C / 32°F to 122°F | Operating Humidity: Less than 85% R.H. | Sensor: Piezoelectric sensor | Sampling Time of Display: (Approx) 1 second | Datalogger Sampling Time Setting range: Auto: 1 sec to 8 Hour 59 Minute 59 sec, Manual: Push the data logger button | Data Output: RS 232/USB PC computer interface | Display: LCD size : 51 mm x 37 mm, LCD with green backlight ( ON/OFF ).
• Dimensions: 190 x 68 x 45 mm (7.5 x 2.7x 1.8 inch) | Power Supply: Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent, DC 9V adapter input (AC/DC power adapter is optional Contact store +91 8142350506) | Power Current: Normal operation (without SD card save data and LCD Backlight is OFF):Approx. DC 7 mA; When SD card save the data and LCD Backlight is OFF): Approx. DC 25 mA.
• Supply Scope: 1 unit of Pitot Tube Anemometer, Instruction Manual and Calibration Certificate | Applications: Industrial, laboratory, heating, ventilation, medical hospital, used for air or not corrosive and not ionized gas & liquid.
