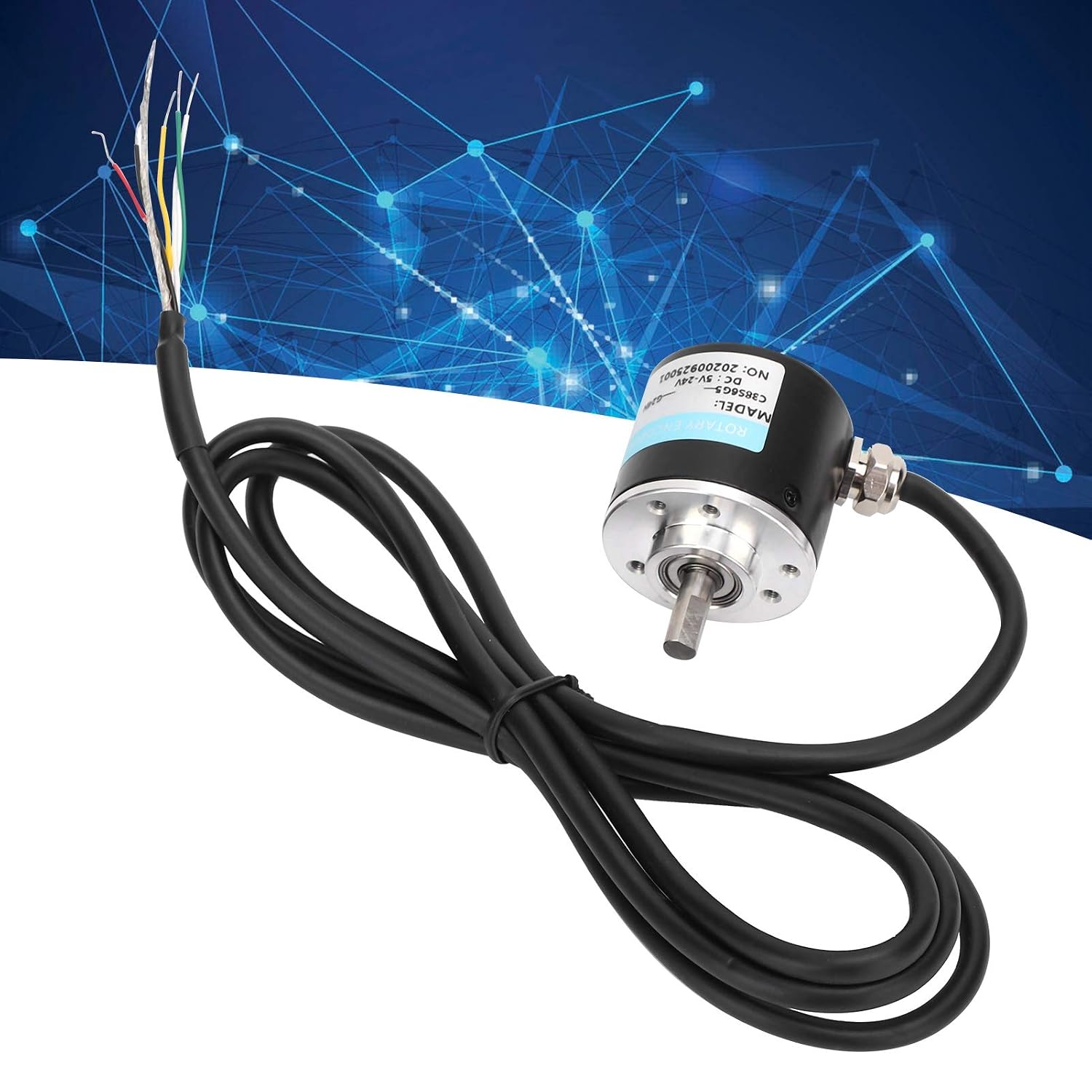

Incremental Rotary Encoder Sensor for Office Automation Equipment, 1024 PPR

Compact Design for Space-Saving Installation — Featuring a small and lightweight rotary encoder design, this incremental encoder is ideal for space-limited installations. Its compact structure simplifies mounting and integration into motion control systems, automation equipment, and precision machinery.Flexible Coupling for Shaft Protection — Equipped with a flexible coupling connection, this encoder helps reduce direct axial and radial loads on the shaft. The design minimizes transmission stress and supports smoother, more stable long-term operation in connected mechanical systems.Precision Feedback for Motion Control — Designed for high-precision applications, this incremental rotary encoder provides reliable ABZ three-phase pulse output for accurate position and speed measurement. It is suitable for office automation equipment, industrial machinery, robotics, and engineering applications.Clear Specifications & Reliable Performance — This rotary encoder sensor features a 6mm shaft diameter, operates on 5-24V DC voltage, and supports speeds from 3000 to 6000 RPM. Available in 1000 PPR and 1024 PPR options with a maximum corresponding frequency of 30kHz for precise signal output.Durable Construction with Easy Installation — Built with a combination of aluminum and plastic materials, this encoder balances durability and lightweight performance. The compact size allows convenient storage and transportation, while included mounting accessories make replacement and installation easier.Specifications:Item Type: Incremental Rotary Encoder / Rotary Encoder SensorMaterial: Aluminum and plasticNumber of Pulses: 1000 PPR, 1024 PPR (Optional)Shaft diameter: Approx 6 mmWorking voltage: 5 to 24 V DCComprehensive speed: 3000 to 6000 rpmMaximum corresponding frequency: 30 kHzNumber of phases: ABZ three phaseCable length: Approx 144 mm 5.7 inPackage Included:1 x Optical Encoder / Motion Control Encoder3 x Screws6 x WashersNote:1. Product contains precision components, handle with care to avoid drops.2. Excessive eccentricity or deviation angle during installation may shorten service life.3. Do not use in strong impact, high vibration, corrosive environment, large magnetic field, high temperature or high humidity, or acidic or environment.4. Power on or off may cause pulse count error; allow 0.5 s delay after power on before use.5. After fixing the product, do not pull the cable with force exceeding 29.4 N.6. If high voltage lines or power lines are nearby, route the cable through conduit.7. Ensure correct wiring and avoid short circuits of terminals; wrong wiring may damage the internal circuit. Insulate unused terminals.8. Shielded wire should be grounded.9. Do not disassemble the product by yourself.10. New and old product versions may be shipped randomly; confirm acceptance before ordering.

• Flexible Coupling for Shaft Protection — Equipped with a flexible coupling connection, this encoder helps reduce direct axial and radial loads on the shaft. The design minimizes transmission stress and supports smoother, more stable long-term operation in connected mechanical systems.
• Flexible Coupling for Shaft Protection — Equipped with a flexible coupling connection, this encoder helps reduce direct axial and radial loads on the shaft. The design minimizes transmission stress and supports smoother, more stable long-term operation in connected mechanical systems.
• Precision Feedback for Motion Control — Designed for high-precision applications, this incremental rotary encoder provides reliable ABZ three-phase pulse output for accurate position and speed measurement. It is suitable for office automation equipment, industrial machinery, robotics, and engineering applications.
• Clear Specifications & Reliable Performance — This rotary encoder sensor features a 6mm shaft diameter, operates on 5-24V DC voltage, and supports speeds from 3000 to 6000 RPM. Available in 1000 PPR and 1024 PPR options with a maximum corresponding frequency of 30kHz for precise signal output.
• Durable Construction with Easy Installation — Built with a combination of aluminum and plastic materials, this encoder balances durability and lightweight performance. The compact size allows convenient storage and transportation, while included mounting accessories make replacement and installation easier.
