KW3AT-16 Microwave Oven Door Switch Replacement Part 16A 125VAC(2X Normally Open + 1x Normally Closed)

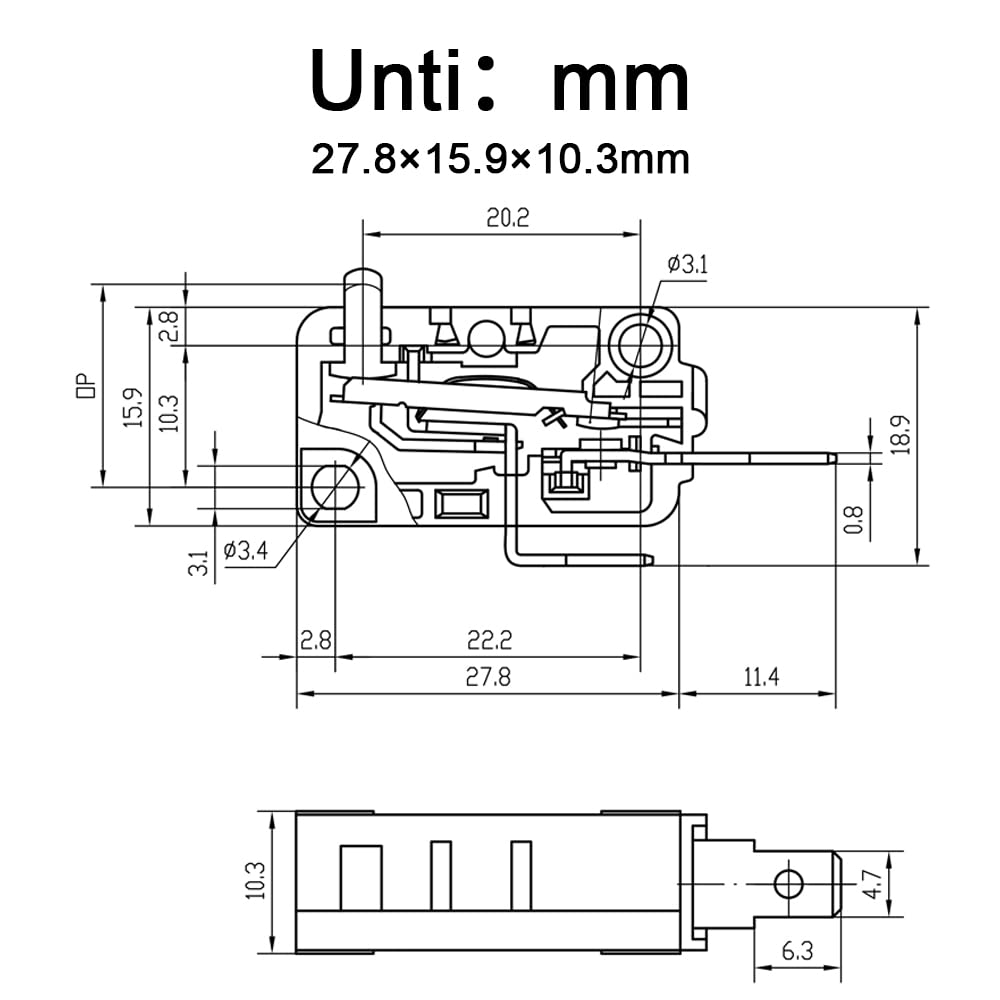

KW3AT-16 Microwave Door Switch (Compatible with most microwave ovens)KW3AT series switch have two different forms of circuit - Normally Open / Normally ClosedNormally Open SwitchNormal time Terminal COM connect to Terminal NC, the Circuit is Open; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is ClosedNormally Closed SwitchNormal time Terminal COM connect to Terminal NC, the Circuit is Closed; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is OpenSwitch Shell Dimensions: 1.09" x 0.63"x 0.41"(27.8 x 15.9 x 10.3 mm).

• 📺KW3AT-16 Microwave Oven Door Interloc Switch；Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4;
• 📺Normally Open📺：After pressing the switch button, the internal contact is closed and the switch is in on state.
• 📺Normally Closed📺：After pressing the switch button, the internal contacts are separated and the switch is disconnected.
• 📺Compatible with Most of Microwave Oven📺If the microwave will not turn or heat properly, there could be an issue with the door switch, a new switch can return the microwave oven to normal operation
• 📺Package Includes📺2x Normally Open Switch + 1x Normally Closed Switch and 3 sets of nylon sheathed terminals.
