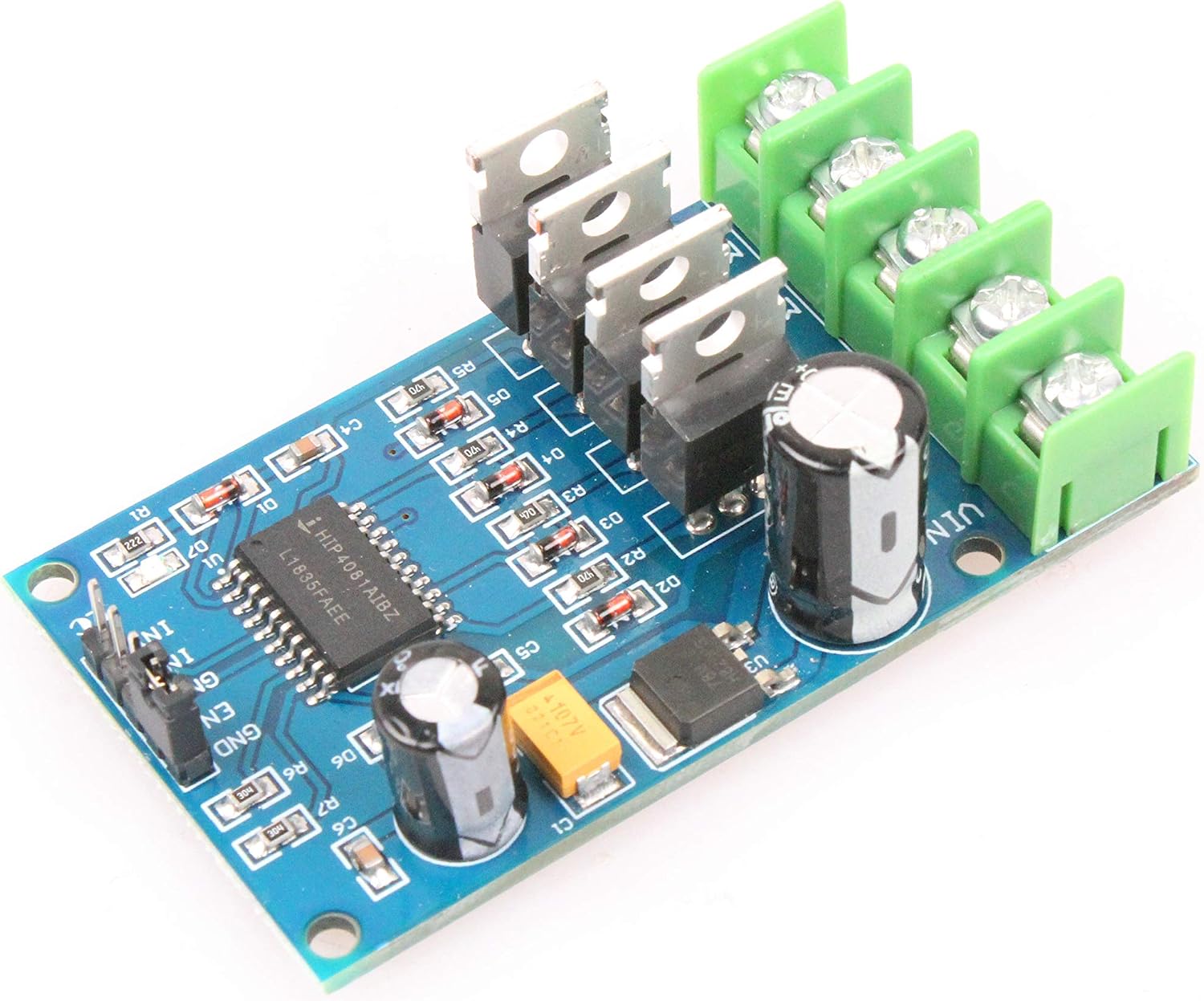

NOYITO 170W High-power H-bridge Motor Drive Module 2-Channel PWM Inputs 0-100% Duty Cycle with Instantaneous Braking Capability Forward Reverse Support 3.3V 5V Logic input Analog input MCU IO Port

NOYITO 170W High-power H-bridge Motor Drive Module User Manual Schematics Wiring Diagram https://1drv.ms/u/s!AlzQUCOyZQhKggdGTmoExd0-JMLB?e=2rVeoZ Features: Full-bridge driver chip + low-pass internal resistance 55V 110A NMOS can be used to achieve forward and reverse rotation of the motor. 2-Channel PWM inputs, the duty cycle can be adjusted between 0-100%, with instantaneous braking capability. The control is simple and convenient. Only three input lines are needed to control the motor. The chip has built-in dead-band hardware control, which can better adapt to frequent steering changes of the motor and reduce its own loss. The wires on the back of the module are tin-plated and can withstand larger currents. Supports 3.3V and 5V logic inputs. It is suitable for direct control of various types of single-chip IO ports, and can also control the motor's forward and reverse rotation through analog input. Parameter: Working voltage is 10V-30V. Power: 170Wmax Board size: 67.5 * 38.8 ** 20.5mm (LWH) Suitable for 5-40V motor. Instructions for use: Motor forward and reverse control: IN1 = 1; IN2 = 0; Motor forward. IN1 = 0; IN2 = 1; Motor reverses. IN1 = 0; IN2 = 0; Motor brake. PWM Speed Control: IN1 = PWM pulse (0-100%); IN2 = 0; motor forward speed is adjustable. IN1 = 0; IN2 = PWM pulse (0-100%); motor reverse speed is adjustable. IN1 = 0; IN2 = 0; motor brake. Package Included: 1pcs NOYITO 170W High-power H-bridge Motor Drive Module

• NOYITO 170W High-power H-bridge Motor Drive Module is composed of H-bridge driver IC and 4 low-pass internal resistance 55V 110A NMOS tubes. It has the characteristics of small heat generation and good motor braking effect.
• 2-Channel PWM inputs, the duty cycle can be adjusted between 0-100%, with instantaneous braking capability.
• Supports 3.3V and 5V logic inputs. It is suitable for MCU IO ports to directly control the motor, and it can also control the motor's forward and reverse rotation through analog input.
• Module working voltage : 10V-30V. Power: 170W max.
• Suitable for 5-40V motor.（The second picture on the left is the wiring diagram）
